9.7 inch Industrial Touch Screen PC
Industrial Panel Computer with 9.7 inch Touch Screen
Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
9.7″ LCD Touch Screen Display
Resistive or Capacitive touch screen
12V DC power input( 8~36V Wide Voltage is optional)
IP65 front panel,It is sealed with special strip, to protect from the dust or water,
Aluminum Alloy housing

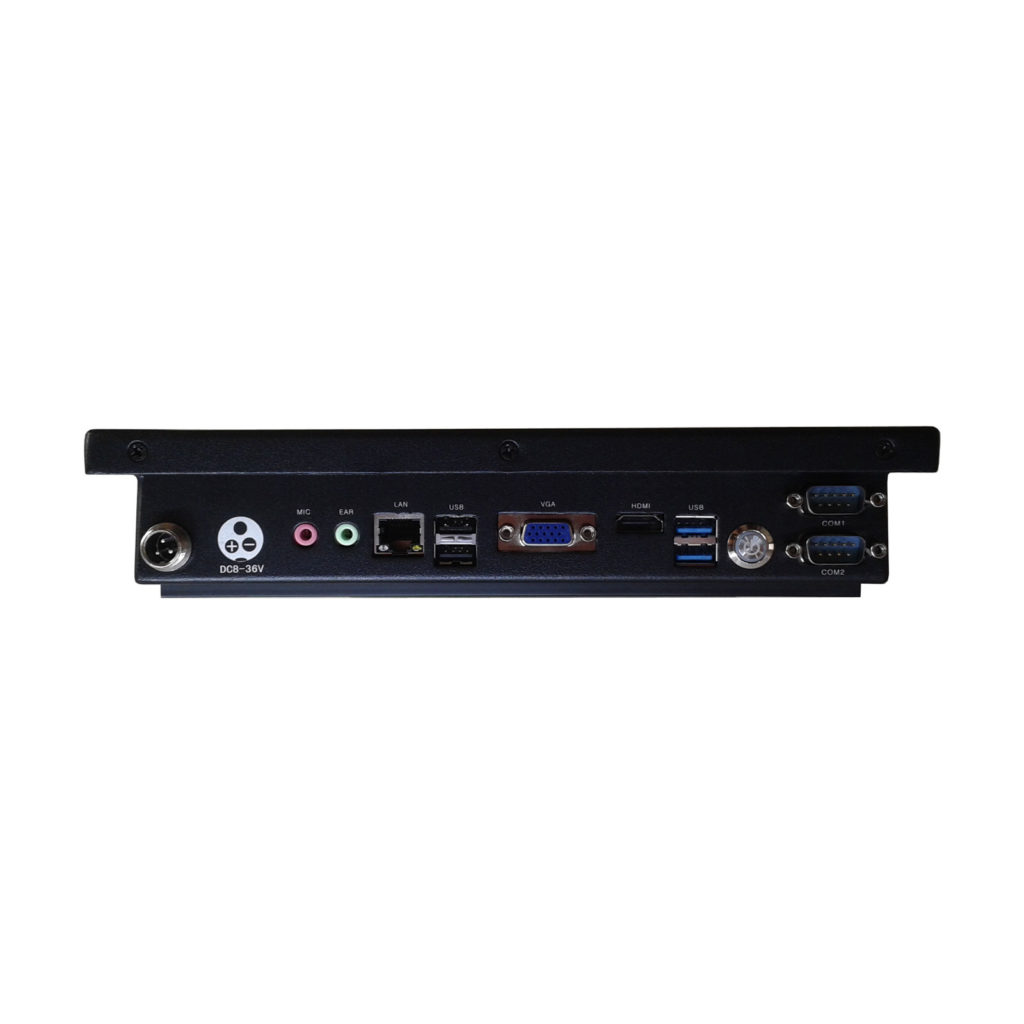

Rich Interfaces. USB, COM, LAN, VGA,HDMI ports.
VESA 75, 100 mounting methods.
Model No.︰EB-97RS-RES
This fanless 9.7 inch panel mount Touch Screen Computer is suitable for a wide variety of industrial applications.
EB-97RS-RES Industrial Panel PC is built with Intel Celeron J1900 quad-core CPU, which employs a system on chip (SoC) architecture to ensure high reliability.
This industrial touch screen pc can be panel mounted or VESA mounted for quick and easy installation in your operations. Additionally, the front bezel of this resistive touch panel PC has an IP65 dust and waterproof standard.
| Operating System | driver for Linux Windows | |||||||
| CPU | Intel® Celeron® J1900 Quad-Core CPU | |||||||
| Chipsets | Intel® HM65 | |||||||
| RAM | 2GByte DDR3-1333 | |||||||
| Hard Drive | 32GB SSD (64/128 GB optional) | |||||||
| Graphic | Intel® HD2500 | |||||||
| Audio | Realtek HD ALC 662 ,2*2W Loudspeaker | |||||||
| LAN | Realtek RTL8111E, 1*10/100/1000MBit RJ45 Ports | |||||||
| External Ports | HDMI | |||||||
| 4*USB2.0 | ||||||||
| 2* COM | ||||||||
| 1*RJ45 | ||||||||
| VGA | ||||||||
| Audio-in/ Audio-out | ||||||||
| Power on/off | ||||||||
| 1*8~ 36V DC_IN | ||||||||
| Internal port | 1*Sata 300MB/S (1*MSATA) | |||||||
| 1*MiniPCI-E | ||||||||
| Input Voltage | 11-13V DC-in | |||||||
| Operating Temperature | ,-10℃ to +60℃ | |||||||
| Driver | Windows, Linux; | |||||||
| Display(mm) | 196.068×147.456 | |||||||
| Aspect Ratio | 4:3 | |||||||
| Physical Resolution | 1024（W)*768(H) | |||||||
| Maximum knowable resolution | 1920（W)*1440(H) | |||||||
| Brightness | 300 | |||||||
| Contrast Ratio | 500:1 | |||||||
| React time | 2ms/6ms | |||||||
| Visual angle | 70/60/70/70(L/R/U/D) | |||||||
| Touch Panel(Choice) | resistive touch panel / 10-points Capactive touch | |||||||
| Touch Panel Driver | Windows, Linux, | |||||||
| React time touch panel | <10 ms | |||||||
| Surface Hardness | ≥3H (6H) | |||||||
| Power Supply | AC100-240V,DC12V | |||||||
| Cooling System | Fanless | |||||||
| Front Panel | IP65 | |||||||
| Install | Arm VESA100,Panel,Wall,Rack,Stand, | |||||||
| Case | Aluminum ,steel sheet | |||||||
| Size(WxHxD)(mm) | 258x205x53.5 | |||||||
