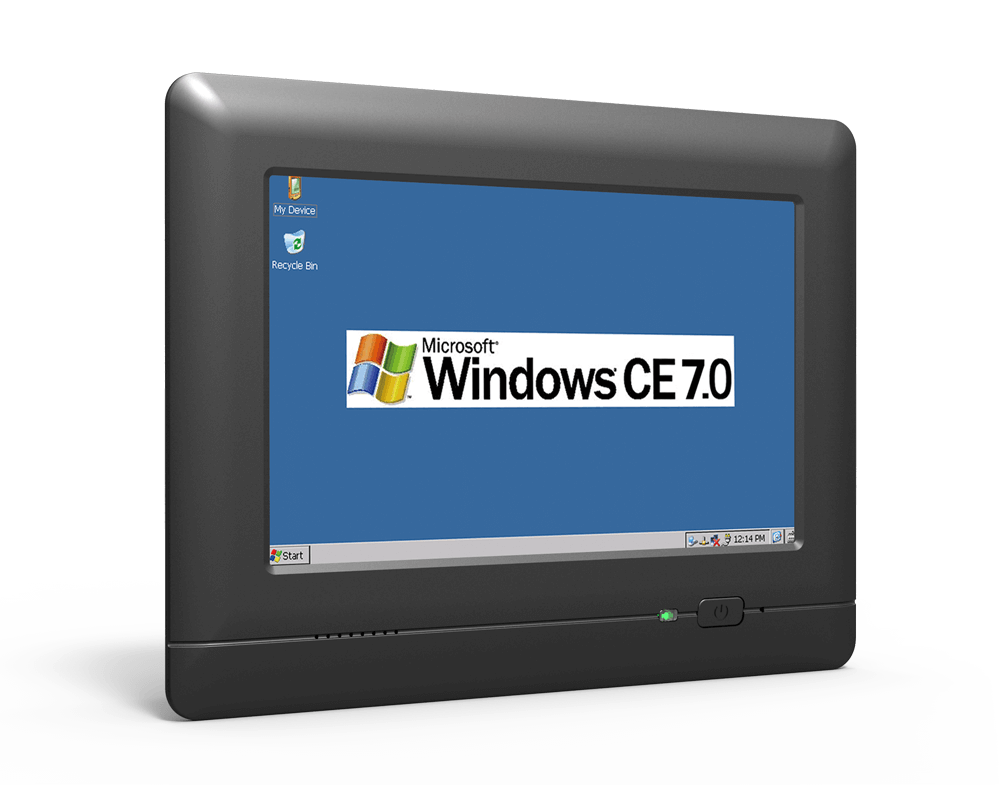

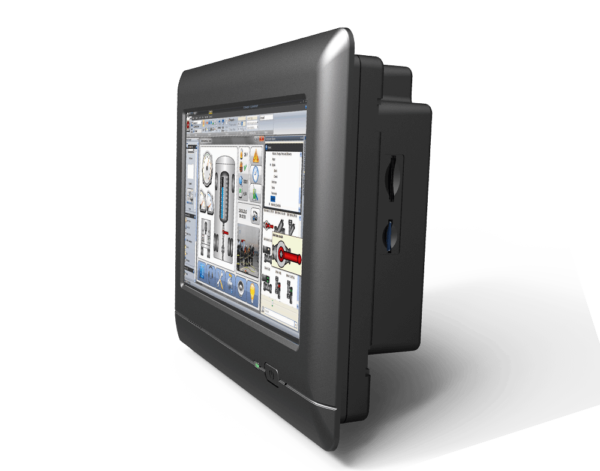

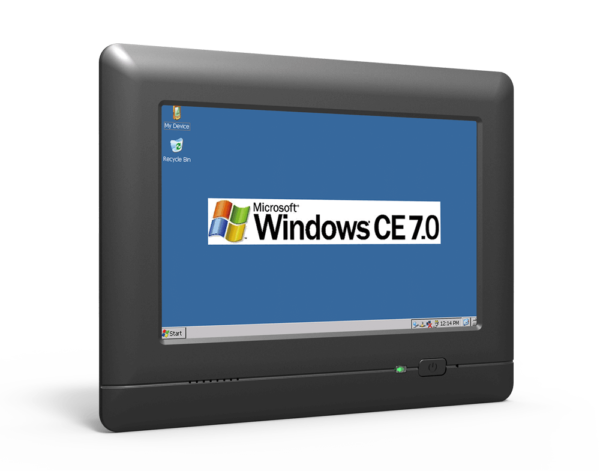

7 inch WinCE Touch Screen HMI
This Windows embdded CE 7.0 Industrial Panel PC that is more rugged, has more I/O connections and is easier to mount on the wall or on your machine. Built-in rechargeable battery, So this 7 inch Touch Screen Embedded Panel PC is ideal for embedded applications in environments where power is intermittent.
Reliable TI 3352 600MHZ CPU
ARM Cortex A8 architecture
4GB ROM, DDR3-512M RAM
7 inch 800*600 resolution LCD Touch Screen
300cd/m2 high brightness
500:1 high contrast
Extensions: RS232, RS422, LAN, TF, SIM/USB
Optional:
Buil-in 2600mAhA battery
3G
WI-FI
GPS
Model Number: EB-706PC
7 inch Windows CE 7.0 Industrial Touch Screen Panel PC
rich resource working with windows CE 7.0 or Linix OS to apply in different fields, eg. fleet management, large warehouse managment, agriculture and construction verhicle, manufacturig,retail, portable medfical device, human-machine interface, catering and entertainment, etc.
| Display Screen | 7 inch LED backlit LCD Display |
| Resolution | 800*480 (1,152,000 pixels) |
| Touch Panel | 4-wire resistive touch screen |
| Brightness | 300cd/㎡ |
| Aspect Ratio | 16:9 |
| OS | Windows CE 7.0, Linux Debian 7.0 |
| CPU | TI 3352, 600MHz processor |
| Memory | 4GB Flash ROM + 512MB DDR3 RAM |

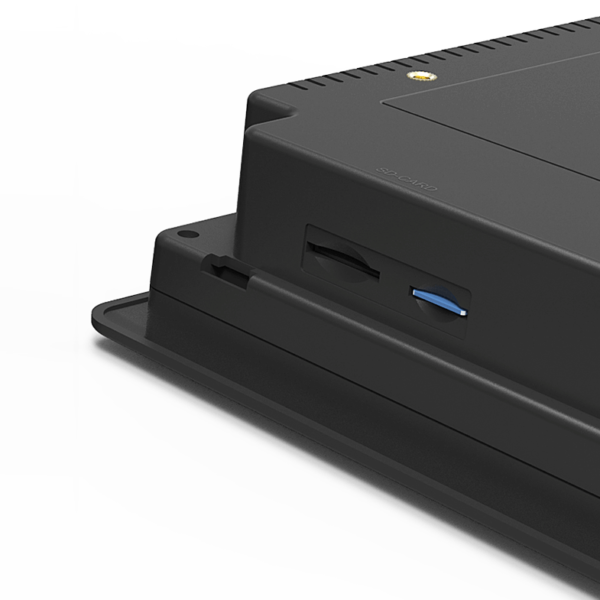

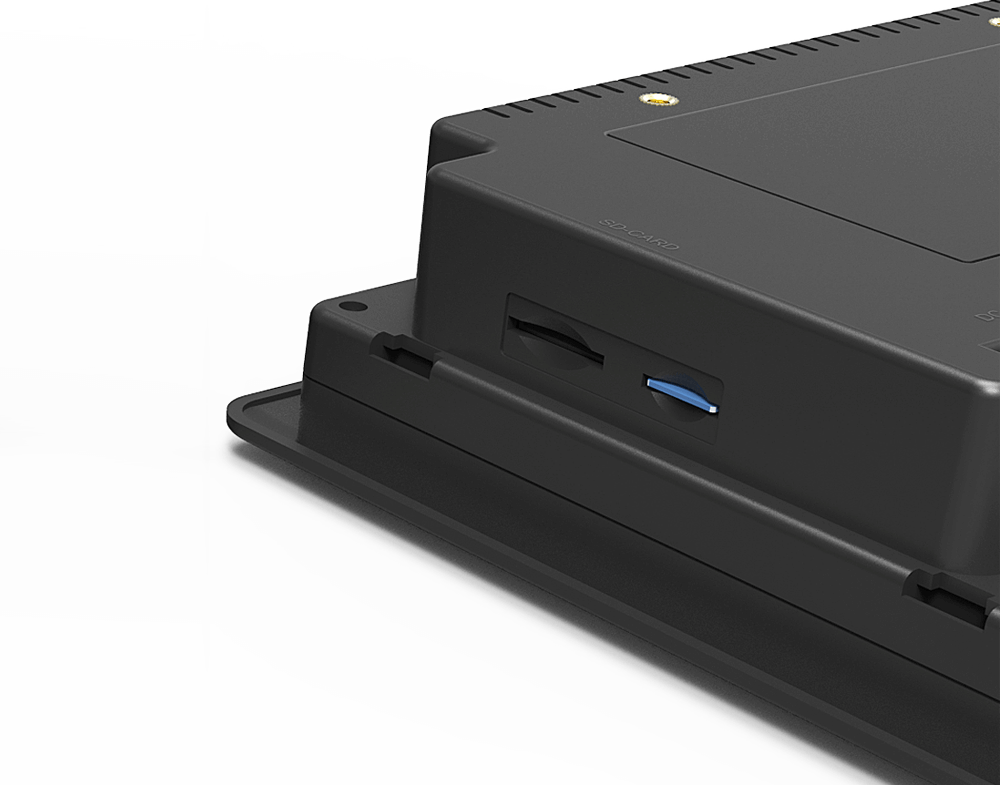

| Expansion Storage | Micro SD Card / USB Flash Memory SD card supports up to 8G (internal & external) |

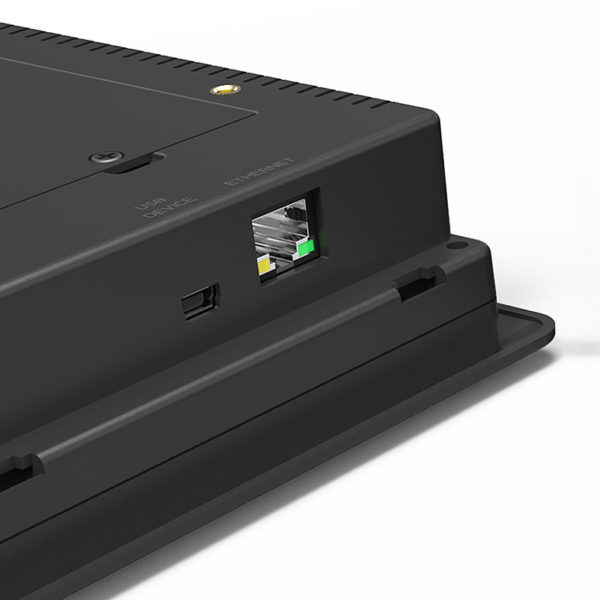

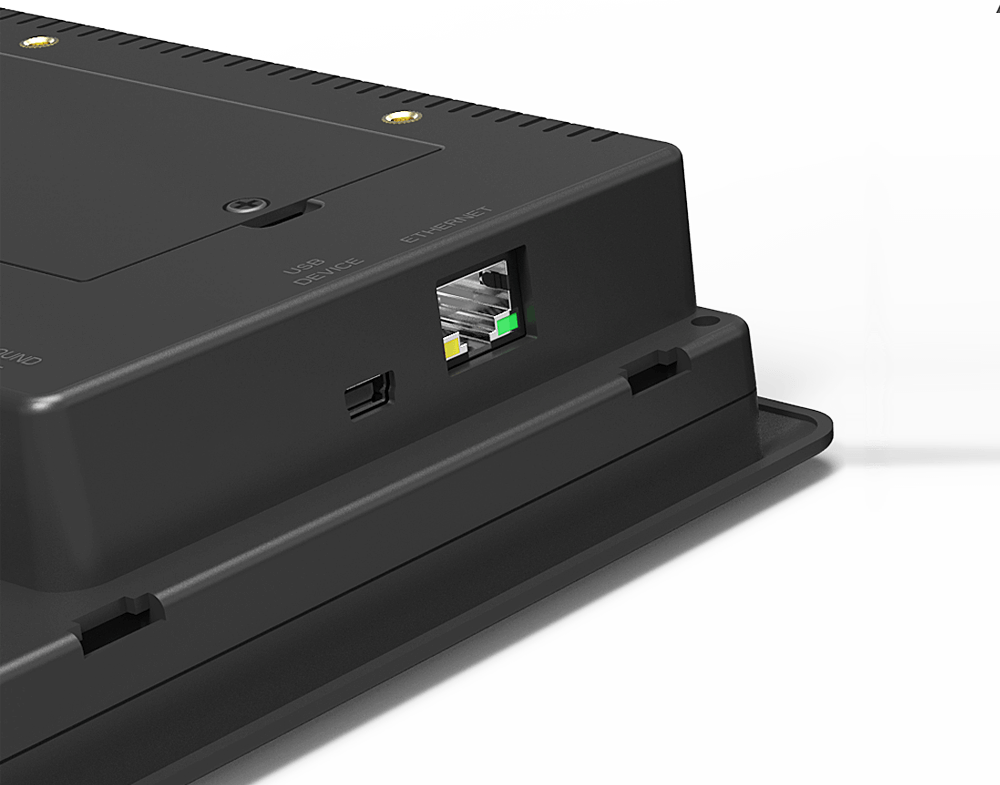

| Transfer Interface | 10 / 100M Ethernet supports USB Host 2.0× 1, Mini USB Device 2.0 × 1 (active sync) RS232 × 1 / RS422 × 1 or RS232 × 2 |
| Speaker | 1W |
| Power consumption | ≤7W / ≤ 10W (with battery) |
| Working Temperature | -20 – 60ºC / 0 – 50ºC (with battery) |
| Storage Temperature | -30 – 70ºC / -10 – 60ºC (with battery) |
| Power Supply | DC 9-36V / DC 11-36V (with battery) |
| Dimension(LWD) | 200 × 151 × 48 mm |
| Weight | 516g / 610g (with battery) |
